Too Long; Did not read

Here, the important info as a user or as client developer to know about this use-case.

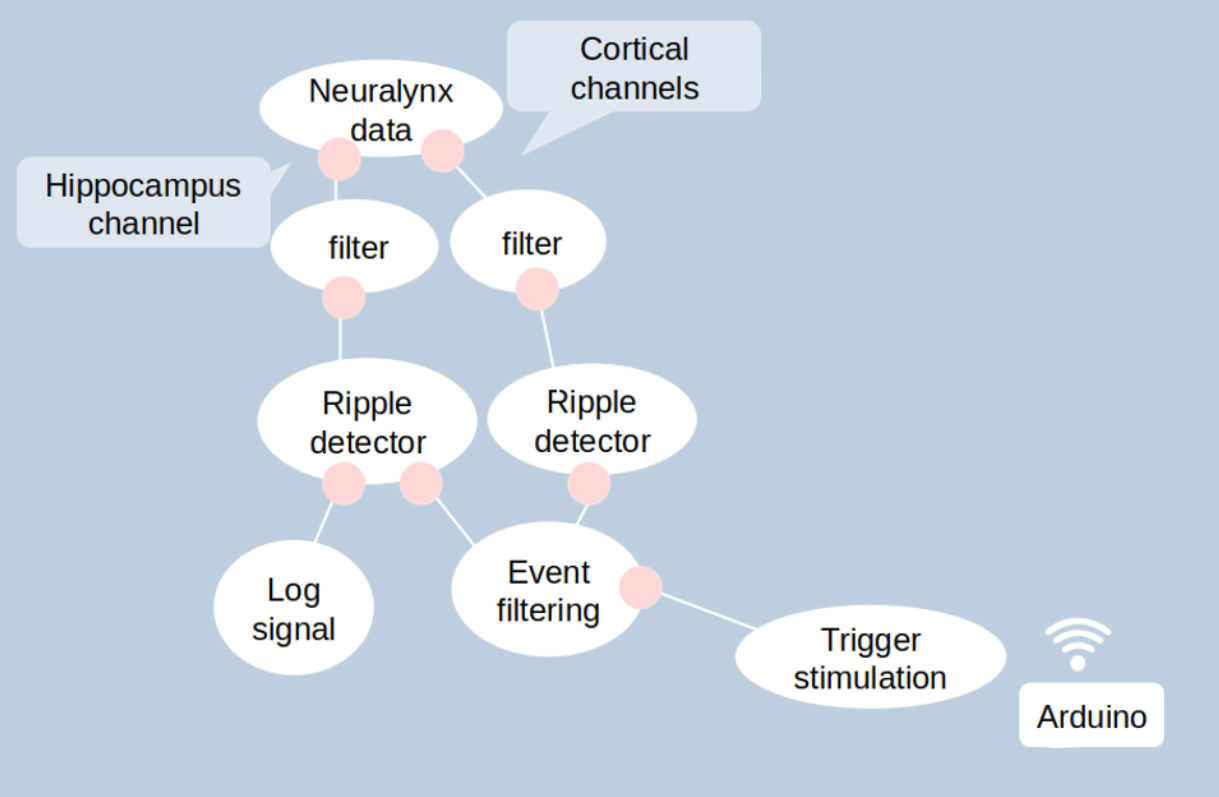

../_images/ripple_graph.png

User input in real-time

Processor ripple filter (1-2) (RippleDetector):

  • threshold dev (double)

  • smooth time (double): integration time for signal statistics. Must be a positive number.

  • detection lockout time (double): Current refractory period following threshold crossing that is not considered for updating signal statistics and for event detection.

  • stream events (bool)

  • stream statistics (bool)

Note

As their is two RippleDetectors, these states are available for each processor.

Processor trigger stimulation (EventDelayed):

  • delayed (bool) - decide if the stimulation after ripple detection should be delayed or ontime.

  • detection only (bool) - decide if a stimulation event should be sent

  • event trigger lockout time (double): Current refractory period following a stimulation where the signal is not considered for updating signal statistics and for event detection to avoid false detection due to electrical spike generated by the stimulation.

  • analysis lockout time (double): Current refractory period following a stimulation where the detection is considered but no stimulation is triggered to avoid over-stimulation.

Output through ZMQ network

format : (timestamps, [ statistical detector output, threshold])

../_images/ripple_threshold.png
